April 6, 2022 - With World Landscape Architecture Month in full swing, we're proud to be part of this community sharing stories of landscape architecture successes around the world. World Landscape Architecture (WLA), a landscape architecture industry website, recently featured our rooftop project, The Meadow at Old Chicago Post Office, with a focus on the innovation behind working with loading constraints of an existing roof and a limited 6-inch soil profile. Read the full story here.

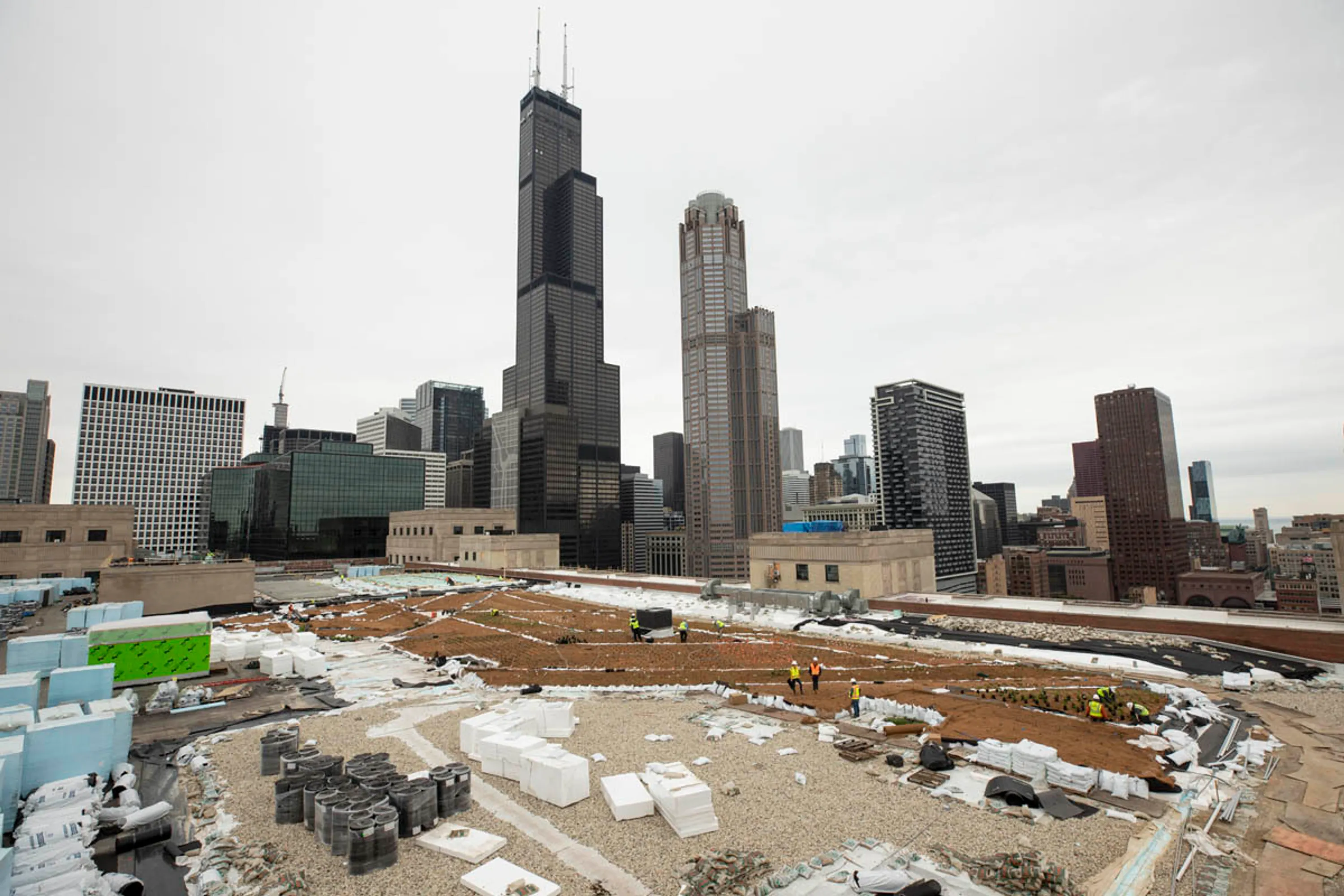

The Meadow OCPO2 Shigley

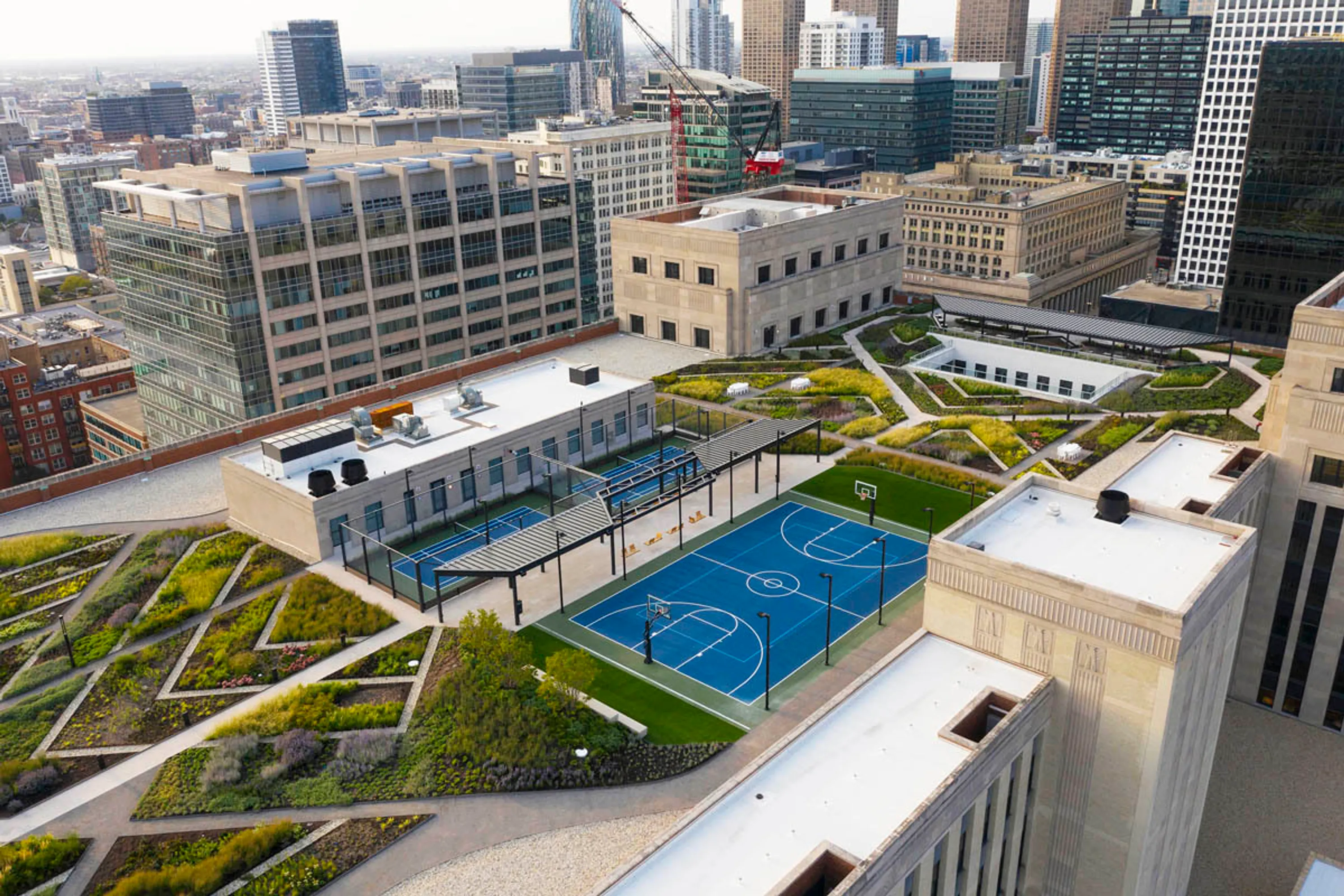

The Meadow OCPO Shigley

Innovation

The most challenging aspect of the Old Chicago Post Office project was how can the design team create an immersive landscape while working within the loading constraints of the existing roof. As the project budget was limited, it was not feasible to reinforce the entire roof structure of the building; only the north terrace and sport court areas received structural reinforcement. Most of the rooftop was limited to 25-45 pounds per square foot (approx. 122-220 kg/square meter) of superimposed dead load, which typically equates to a maximum of four inches of soil and limits planting to primarily sedums. The design for the Meadow sought to create a rich tapestry of plants that would envelop users in a colorful, vibrant landscape of texture, form, and color. The plants the design sought to utilize typically require a minimum of six to nine inches of soil depth which was not possible using traditional green roof soil mix on the Post Office rooftop.

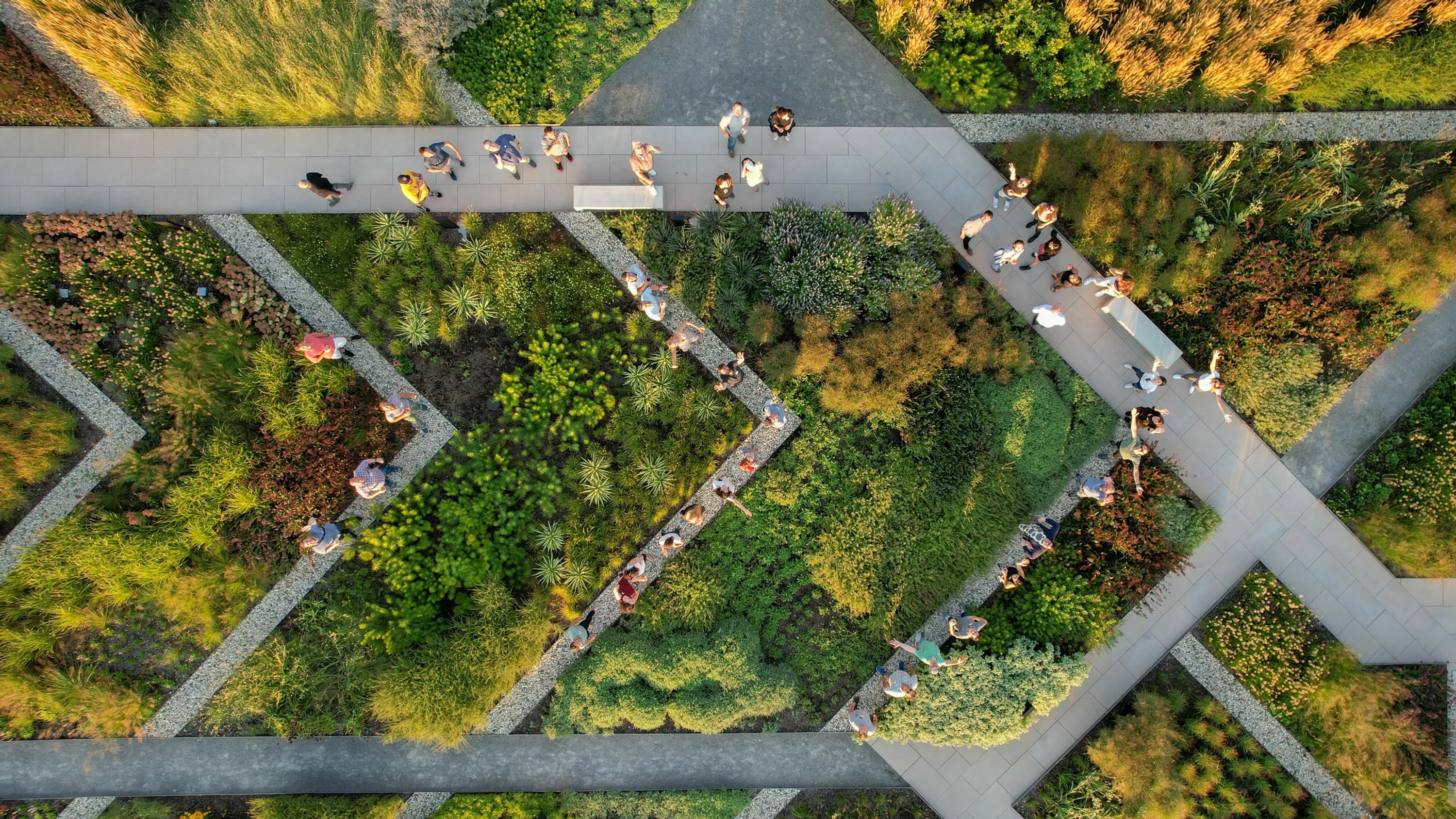

The Meadow OCPO7 Shigley 678x452

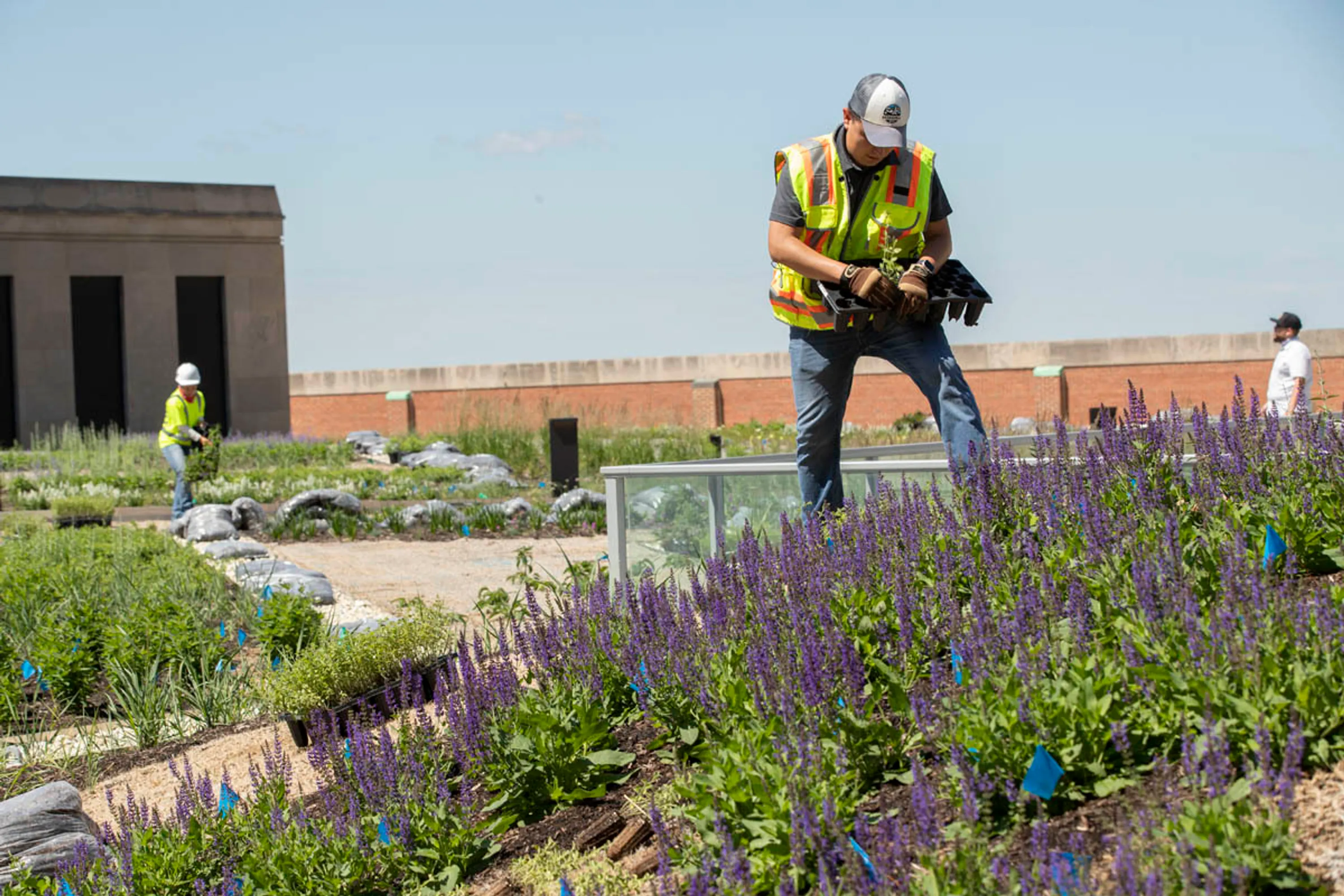

The Meadow OCPO6 Shigley

The Hoerr Schaudt team collaborated with Columbia Green Technologies, to successfully achieve The Meadow’s vibrant landscape of diverse plants. The design team was able to move forward with their unique plant mix made up of large perennials and grasses within the 6-inch depth ultra-lightweight growing media provided by Columbia Green while avoiding exceeding the structural limitations of this historic building. The custom vegetative roof growing media was locally blended and formulated to meet the rigorous requirements of the rooftop environment for particle size gradation, fines content, dry and saturated bulk density, total porosity, air-filled porosity, water retention, hydraulic conductivity, pH balance, soluble salt content and organic matter content.

Read more here

Project Team:

  • The 601W Companies – Owner and Project Developer
  • Gensler – Architect
  • JLL – Building Operator and Property Management
  • Columbia Green Technologies – Soil Supplier
  • WSP – Structural Engineer
  • The Telos Group – Leasing Agent
  • Wiss, Janney, Elstner Associates – MEP and Waterproofing
  • BEAR Construction Company – General Contractor
  • FRS Design Group – Irrigation Design
  • Christy Webber Landscapes – Landscape Contractor
  • Midwest Trading - Horticultural Supplies & Products
  • Midwest Groundcovers - Plant Nursery

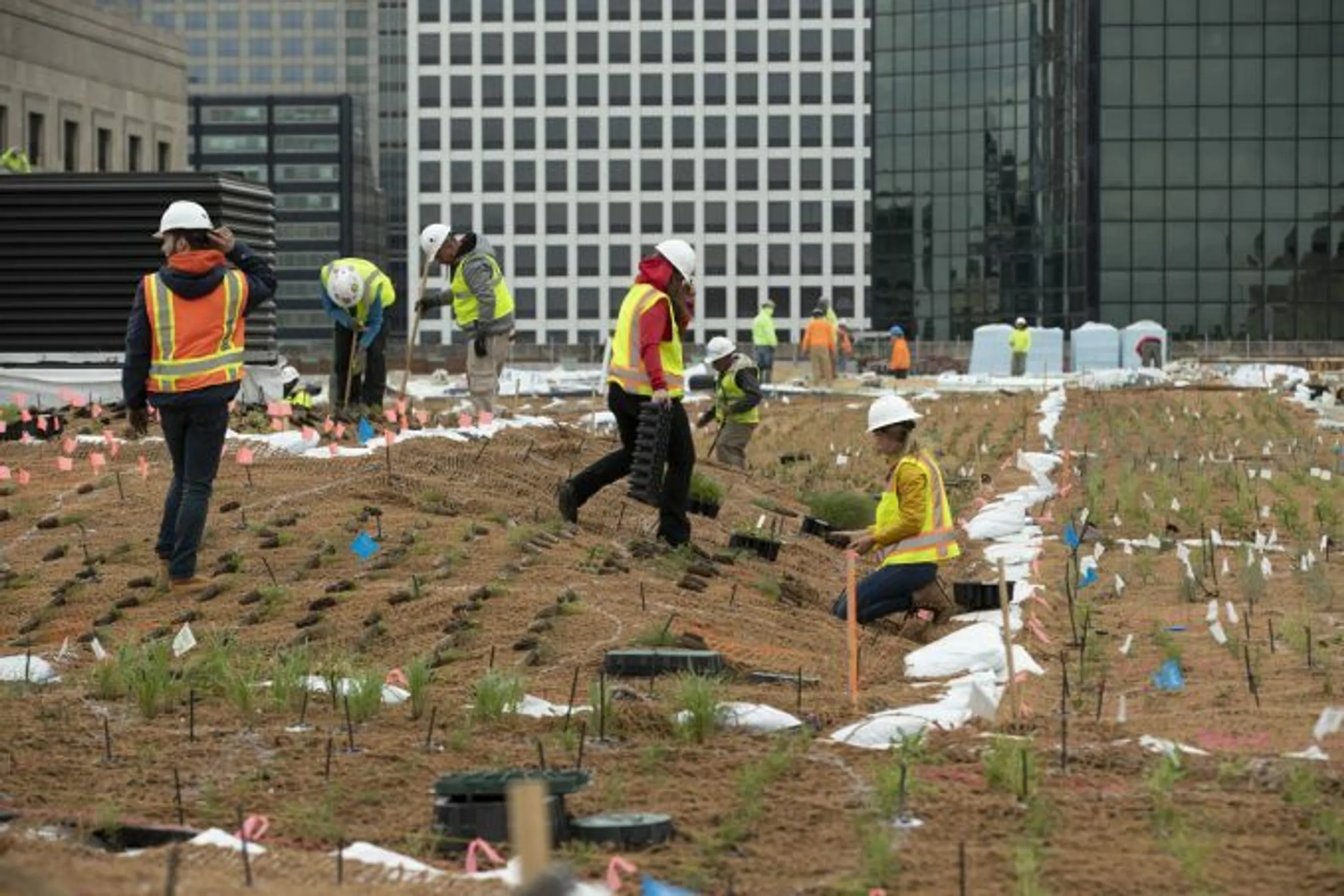

The Meadow OCPO5 Shigley
